MATERIALS HANDLING LIFT

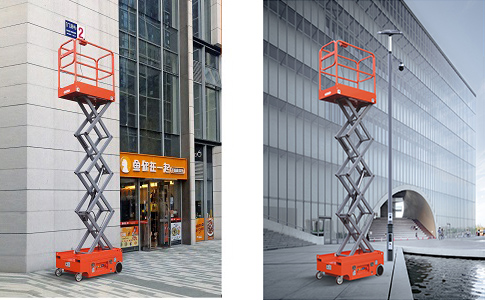

Automatic Semi Electric Scissor Working Platform
ASF3-3.9 ASF2-4.8
| Automatic Semi Electric Scissor Working Platform | |
| Max Platform Height | 3M/3.9M/4.8M |
| Min Platform Height | 28" |
| Ground Clearance | 2-23/64" |
| Loading Capacity | 300KGS/200KGS |
| Platform Size | 45-932" x 27-916" |
| Platform Extention | 21-21/32" |
| Handrail Height | 41" |
| Working Type | Electric moving, Electric lifting |
| Battery | 12V/80Ah 6 hours charging, 5 hours working time |
| Min Turning Radius | 47" |
| Gradeability | 20% |
| Caster | 9" no mark wheel |
| Overall length | 50-2564" |
| Overall Width | 30" |
| Closed Height | 68" |
| Stowed Height | 56" |
